Flat page components

Configure components for flat pages in Skedulo Plus extensions.

Overview

Flat components are used to represent the smallest units of data that can be used on a flat page (a record page). These components are used to render data in a specific way, such as how text is displayed or how a field is rendered.

A flat page could be a single form that a user can fill out, with page components that may include sections, text fields, multi-select, data time pickers, attachment editors, and so on.

Abstract/common behavior for flat page components

Properties and expressions control the behavior and visibility of flat page components.

Flat page component common properties

Property Description
showIfExpression When the showIfExpression property is defined, it adjusts the component visibility based on the boolean value returned on the expression.

Flat page component editor properties

Property Description
common properties (see above) The common properties are used to control the behavior and visibility of the component.
title The title of the field.
validator Validation logic for the field.
readonly Indicates whether or not an editor control is read-only.

Property descriptions and examples

showIfExpression

The showIfExpression property is used to control the visibility of a component. When the showIfExpression property is defined, it adjusts the component visibility based on the boolean value returned on the expression.

For example:

{
  "showIfExpression": "formData.JobProducts.length > 0"
}

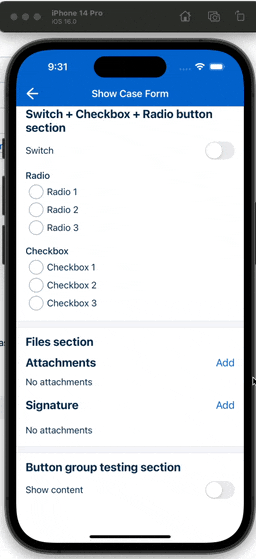

A screen recording demonstrating the showIf switch component

readOnly

The readOnly property is used to return a boolean value that defines whether or not an editor control is read-only.

The following examples set the editable field to read-only:

"readonly": "cf.canEdit(pageData.Status) == false",

Or:

"readonly": "false",

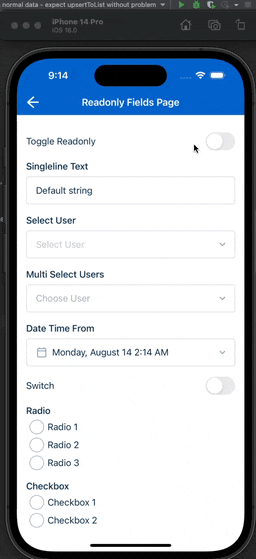

A screen recording demonstrating the readOnly switch component

Read-only can be defined at the component-level or at the page-level. If the page-level readonly property is set to true, all components on the page will be read-only. However, a page that has a readonly property set to false can still have components that are read-only and components that are editable.
